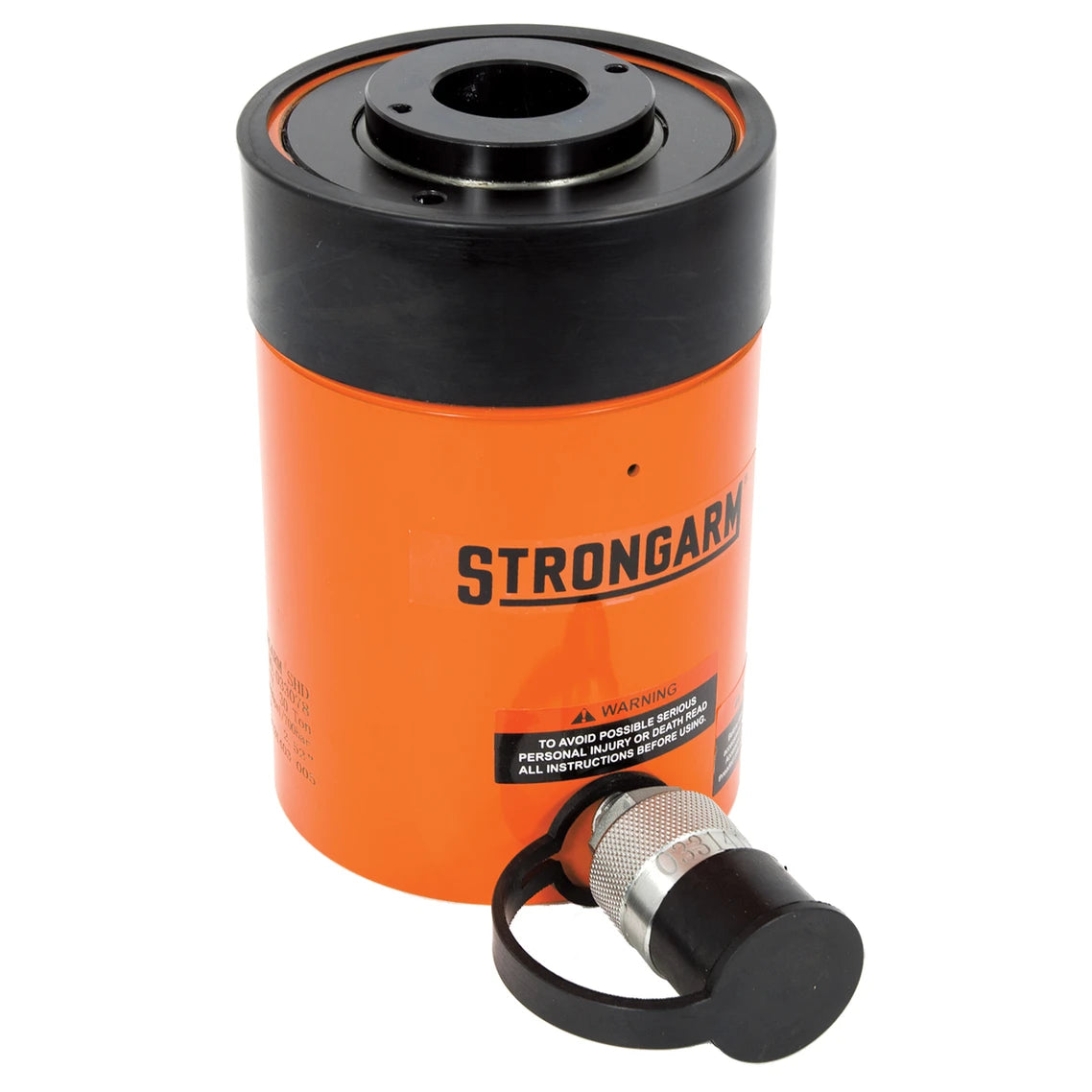

The Strongarm SACH302 is a super heavy duty, single acting cylinder with a hollow centre for applications requiring pushing or pulling force. Rated at 30 metric tons at 700 Bar (10,000 PSI), it combines alloy steel construction with a spring-return mechanism. Threaded collar and plunger sections provide fixture attachment points, while quick couplings connect at the hydraulic port. A baked enamel coating helps resist corrosion. Model reference: SUW-033078; product number: 033078.

• Capacity and operation: 30 metric tons / 33 US tons at 700 Bar (10,000 PSI); hollow plunger configuration; single acting operation with spring return; complies with ASME B-30.1.
• Construction and connection: High-strength alloy steel, corrosion-resistant baked enamel finish, 3/8"-18NPT quick couplings, and threaded collar and plunger for attaching fixtures.
• Stroke and hydraulic data: Stroke: 2.52 in; effective cylinder area: 7.39 in²; oil capacity: 18.62 in³.
• Dimensions and weight: Collapsed height (A): 7.01 in; extended height (B): 9.53 in; outside diameter (D): 4.53 in; piston rod diameter (F): 2.56 in; centre hole diameter: 1.31; weight: 23.10 lb / 10.45 kg.
• Collar details: Collar thread (C): 4-1/2 - 12 in; collar thread length (X): 1.65 in.
• Base fixture mounting: Bolt circle (U): 3.63 in; hole thread (V): 3/8 - 16UNC; thread depth (Z): .55 in.
