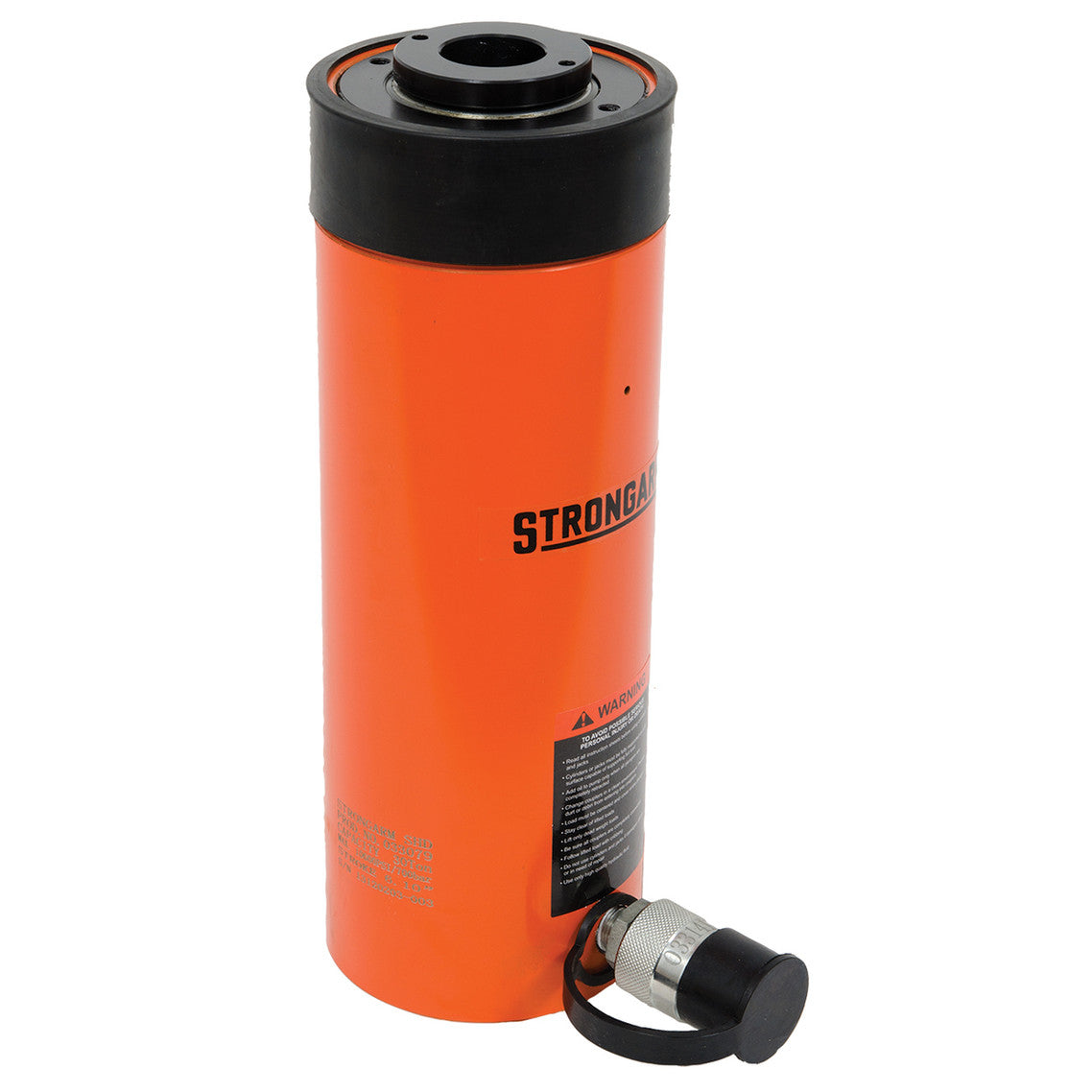

The Strongarm SACH306 is a super heavy duty, single-acting cylinder with a hollow plunger that supports pushing and pulling applications. Its high-strength alloy steel construction is paired with a baked enamel coating to resist corrosion. Spring return, threaded collar and plunger connections for attaching fixtures, and 3/8"-18NPT quick couplings complete the design. Rated at 30 metric tons at 700 Bar (10,000 PSI), this cylinder complies with ASME B-30.1.

• Identification: SACH306 model; SKU SUW-033079; product number 033079.
• Capacity and travel: 30 metric tons / 33 US tons at 700 Bar (10,000 PSI); 6.10 in stroke; 7.39 in² effective cylinder area; 45.10 in³ oil capacity.
• Overall dimensions: 12.99 in collapsed height (A), 19.09 in extended height (B), and 4.53 in outside diameter (D).
• Plunger dimensions: 2.56 in piston rod diameter (F) and 1.31 in centre hole diameter.
• Fixture dimensions: 4-1/2 - 12 collar thread (C) with 1.65 in thread length (X); base holes have a 3.63 in bolt circle (U), 3/8 - 16UNC thread (V), and .55 in thread depth (Z).
• Cylinder weight: 42.46 lb / 19.3 kg.
