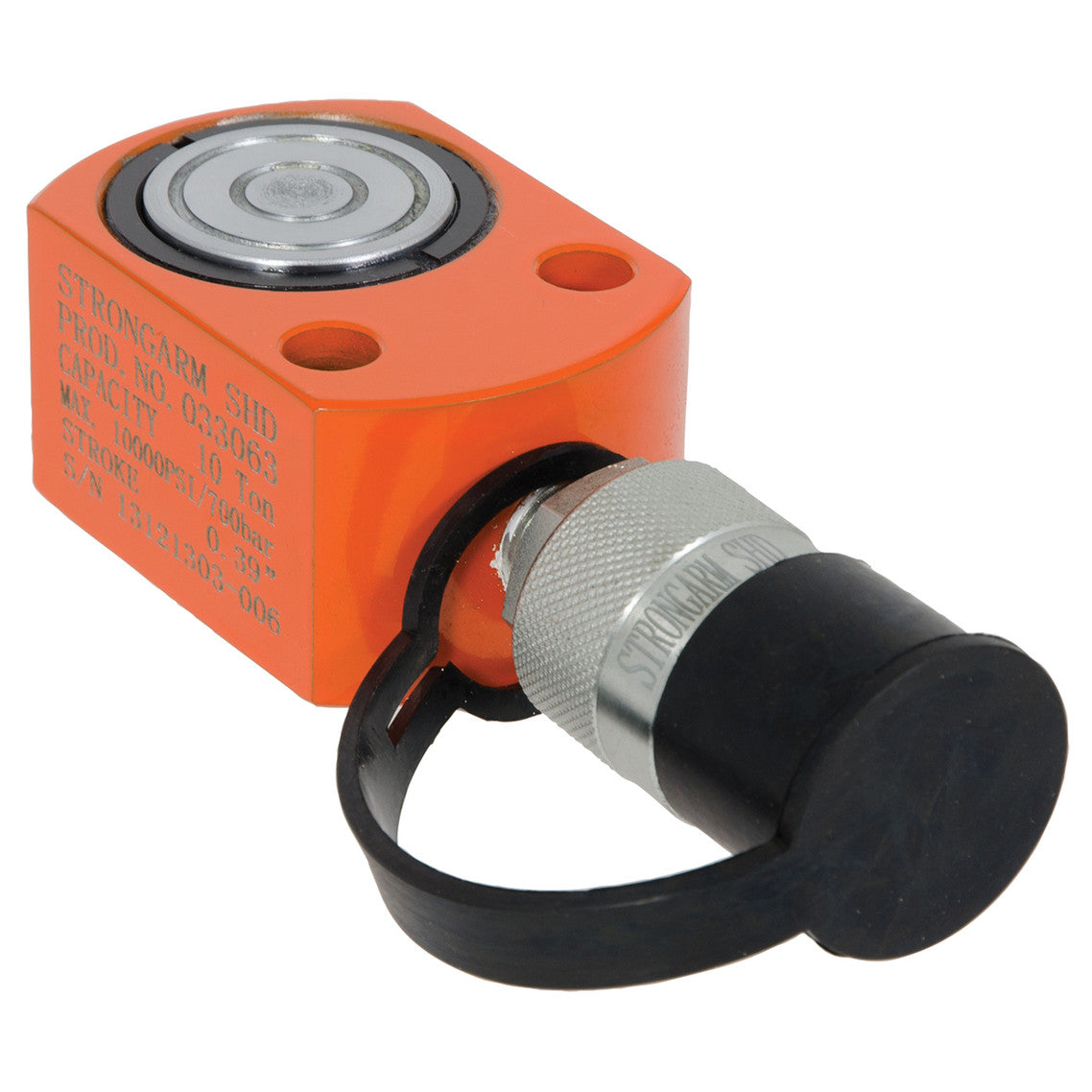

The Strongarm SACL100 is a low-height, single-acting cylinder intended for confined-space work. Model SUW-033063 provides a 10 metric ton capacity at 700 Bar (10,000 PSI), with a collapsed height of 1.65 inches. Its alloy-steel construction, corrosion-resistant baked enamel coating and heavy-duty springs for plunger return support demanding use. Fixture mounting holes and a grooved plunger tip with a threaded saddle-mounting hole provide attachment features.

• Construction: high-strength alloy steel with baked enamel protection against corrosion; complies with ASME B-30.1.
• Connections and attachments: high-quality quick coupling with 3/8"-18NPT thread; fixture mounting holes; threaded hole in the grooved plunger end for tilt saddle mounting.
• Performance at 700 Bar (10,000 PSI): capacity of 10 metric tons / 11 US tons; stroke of .39 inches; effective cylinder area of 2.25 in²; oil capacity of .88 in³.
• Cylinder dimensions: collapsed height (A), 1.65 inches; extended height (B), 2.09 inches; outside diameter (D), 3.27 x 2.20 inches; piston rod diameter (F), 1.50 inches.
• Top dimensions: (M) 1.34 inches; (L) 1.10 inches; (V) .28 inches; (U) 1.44 inches.
• Weight: 3.30 lb / 1.5 kg. Product number: 033063. Model/SKU: SUW-033063.
