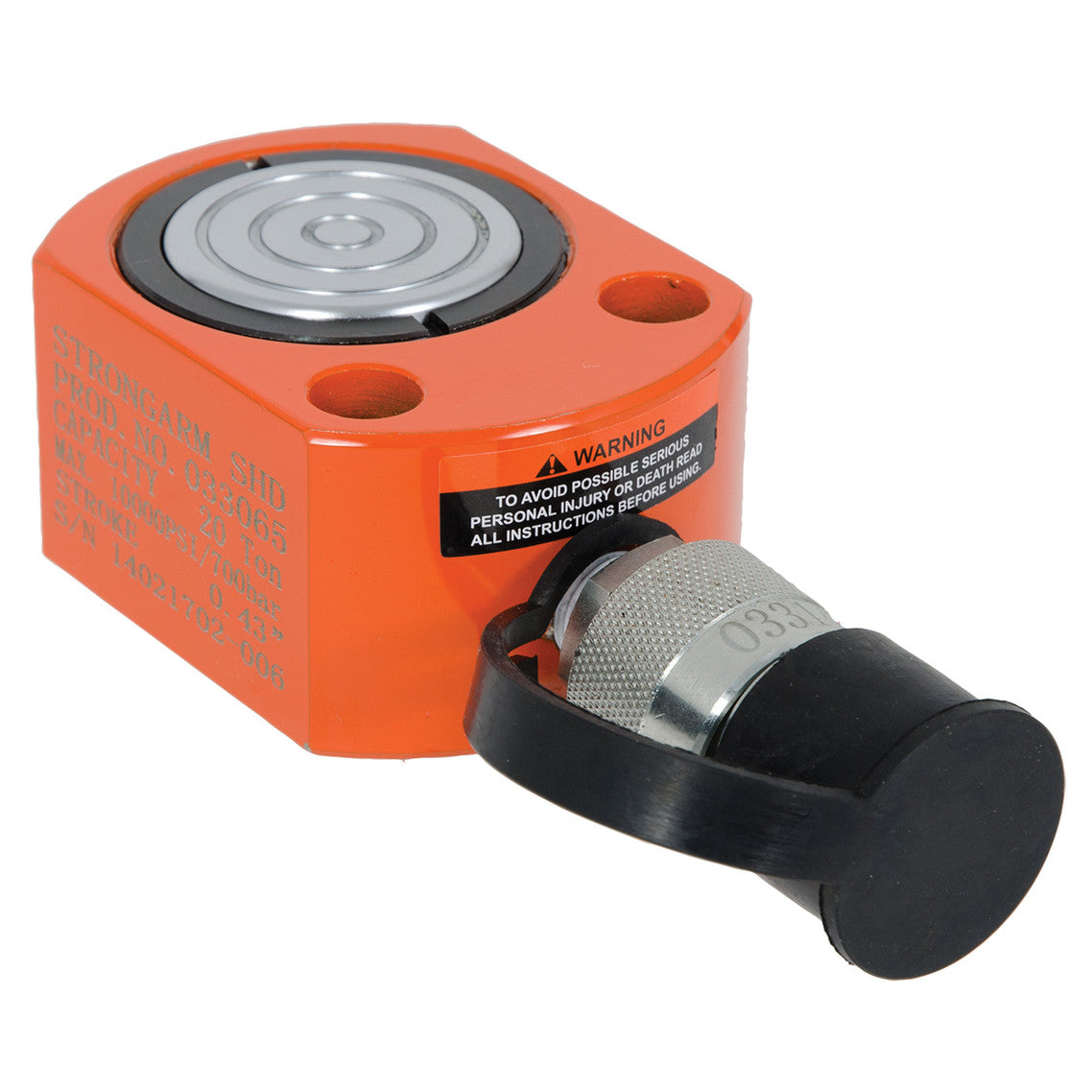

The Strongarm SACL200 is a super heavy duty, single acting cylinder intended for confined spaces. Its low-height design combines high-strength alloy steel construction with a baked enamel coating that improves resistance to corrosion. Fixture mounting holes provide attachment points, while the grooved end of the plunger includes a threaded opening for tilt saddle mounting. Heavy duty springs return the plunger, and a quality quick coupling provides the connection.

• Capacity at 700 Bar (10,000 PSI): 20 Metric Ton / 22 US Ton. Meets ASME B-30.1 requirements.
• Stroke: .43 in; effective cylinder area: 4.39 in²; oil capacity: 1.90 in³.
• Height when collapsed (A): 2.01 inches; height when extended (B): 2.44 inches.
• Outside diameter (D): 3.98 x 3.00 inches; piston rod diameter (F): 2.01 inches. Top dimensions: M 1.57 inches, L 1.57 inches, V .39 inches and U 1.94 inches.
• Quick coupling size: 3/8"-18NPT. Plunger features include return springs, a grooved end and a threaded tilt saddle mounting hole.
• Weight: 5.90 lb / 2.7 kg. Model: SACL200; SKU: SUW-033065; product number: 033065.
