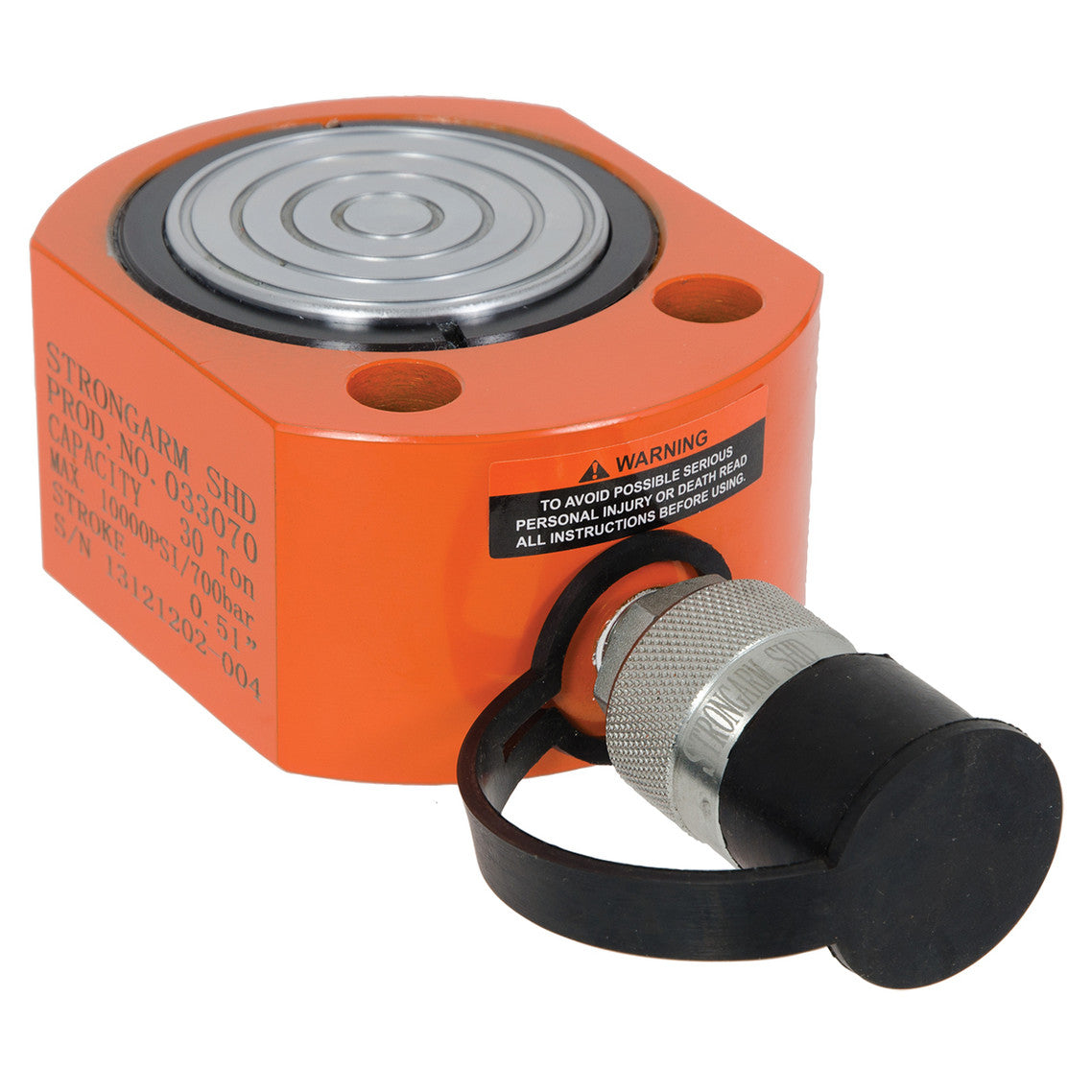

The Strongarm SACL300 is a super heavy duty, low height, single acting cylinder intended for confined spaces. Its high-strength alloy steel construction has a baked enamel coating to improve corrosion resistance. Fixture attachment is supported by mounting holes, while the grooved end of the plunger includes a threaded hole for mounting tilt saddles. Heavy duty springs return the plunger, and a high-quality 3/8"-18NPT quick coupling provides the connection. The cylinder complies with ASME B-30.1.

• Identification: model SACL300; SKU SUW-033070; product number 033070.
• Rated capacity at 700 Bar (10,000 PSI): 30 Metric Ton / 33 US Ton. Weight: 9.50 lb / 4.3 kg.
• Stroke: .51 in; effective cylinder area: 6.48 in²; oil capacity: 3.31 in³.
• Height dimensions: collapsed (A), 2.30 inches; extended (B), 2.80 inches.
• Outside diameter (D): 4.61 x 3.74 inches; piston rod diameter (F): 2.60 inches.
• Top dimensions: (M) 1.77 inches; (L) 1.89 inches; (V) .39 inches; (U) 2.05 inches.
