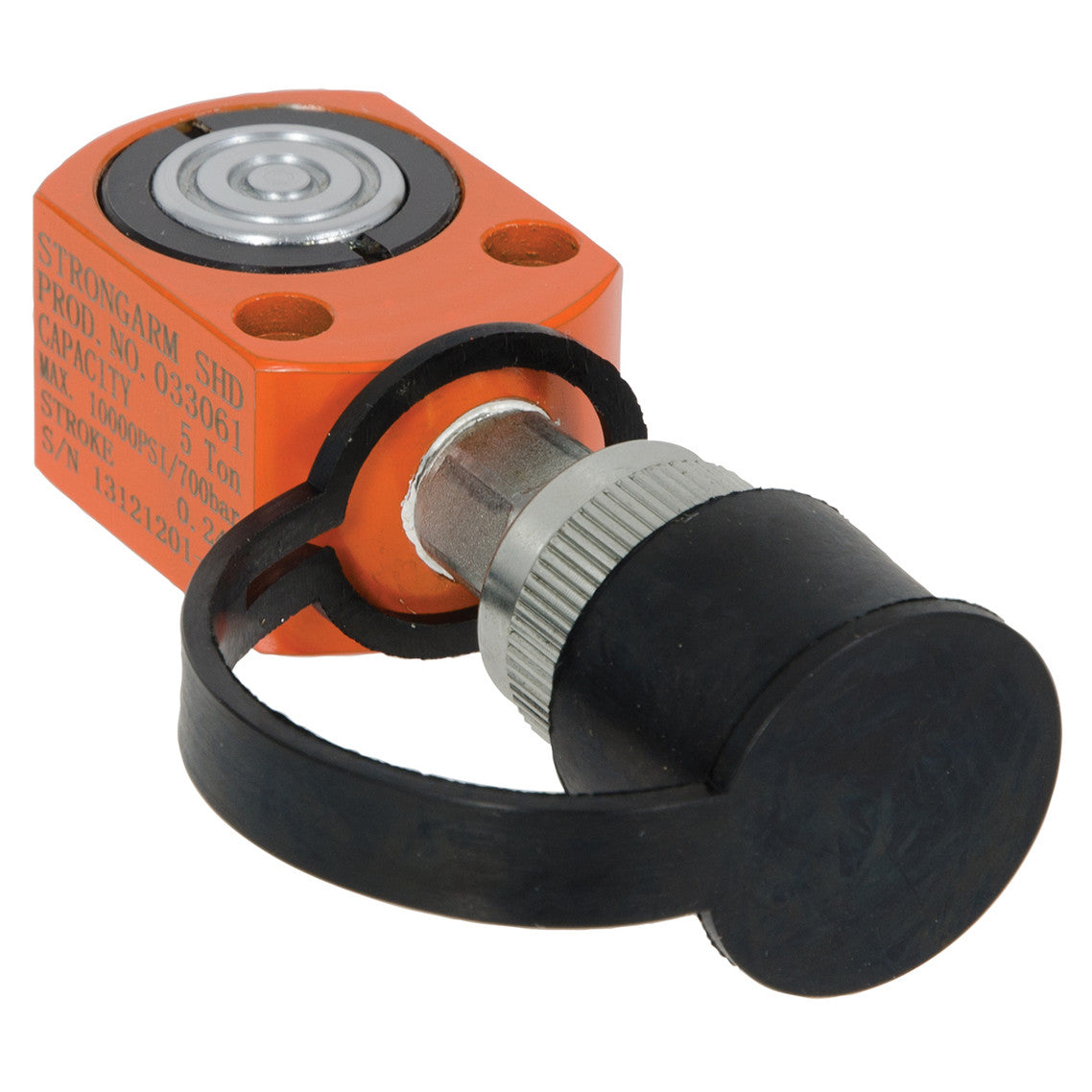

The Strongarm SACL50 is a super heavy-duty, single-acting cylinder intended for confined-space work. Its low-height design combines high-strength alloy steel construction with a baked enamel coating that improves resistance to corrosion. Fixture attachment is supported by mounting holes, while the grooved end of the plunger includes a threaded hole to mount tilt saddles. Heavy-duty springs return the plunger, and a high-quality quick coupling provides the hydraulic connection.

• Identification and compliance: model SACL50; SKU SUW-033061; product number 033061; complies with ASME B-30.1.
• Rated capacity: 5 metric tons / 5.5 US tons at 700 Bar (10,000 PSI); stroke: .24 in.
• Hydraulic specifications: effective cylinder area of 1.10 in²; oil capacity of .26 in³; quick coupling size of 3/8"-18NPT.
• Height and weight: collapsed height (A) of 1.30 in; extended height (B) of 1.54 in; product weight of 1.30 lb / .6 kg.
• Body and rod measurements: outside diameter (D) of 2.32 x 1.65 in; piston rod diameter (F) of .98 in.
• Top dimensions: (M) .91 in; (L) .83 in; (V) .22 in; (U) 1.12 in.
