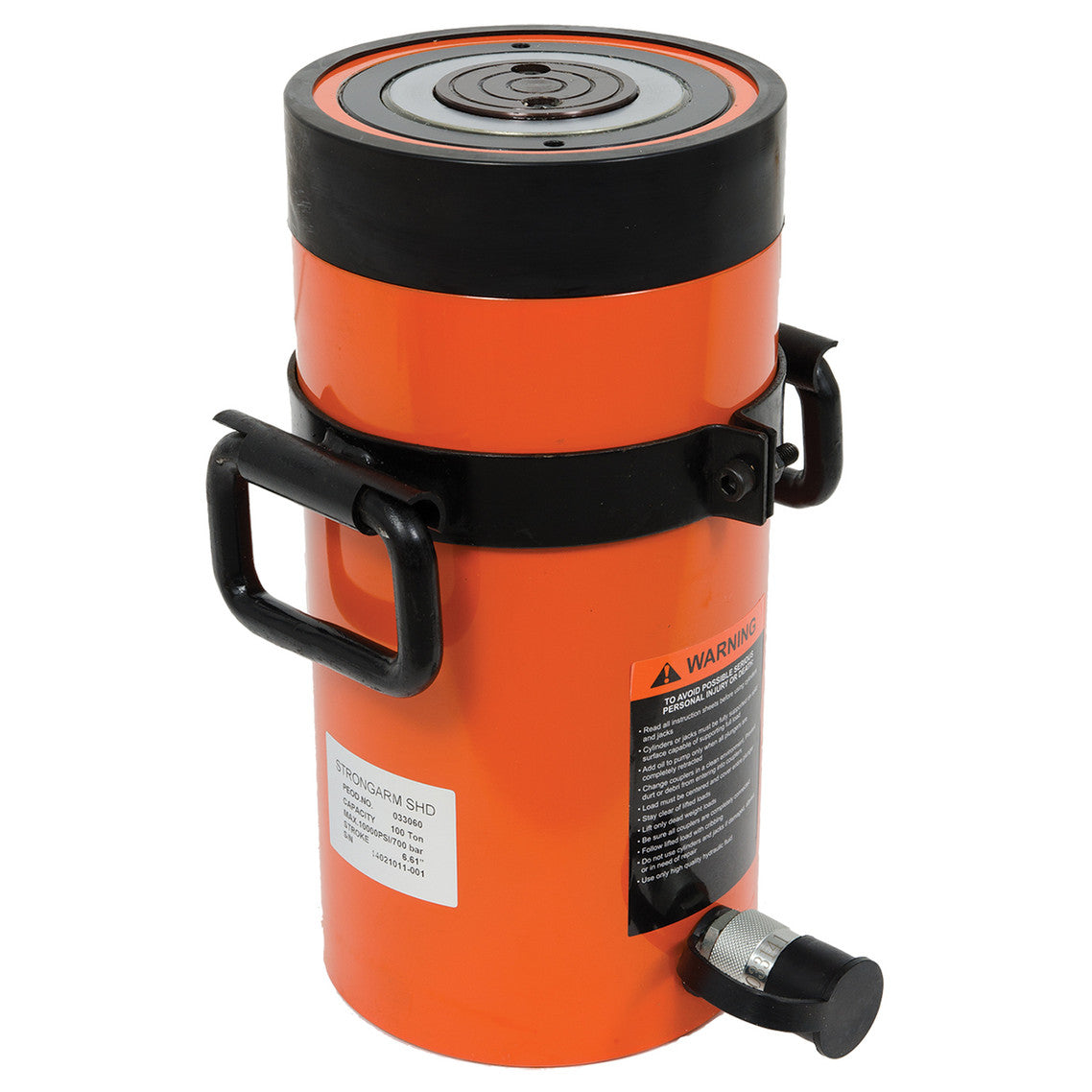

The Strongarm SACS1006 is a super heavy duty, single-acting cylinder with high-strength alloy steel construction and a treated cylinder interior for durability. A baked enamel coating helps resist corrosion, while a heavy duty spring returns the plunger. Threaded attachment points and mounting holes in the base accommodate optional fixtures. This 100 Metric Ton model complies with ANSI specifications and has a rated capacity of 95 metric tons / 104.7 US tons at 700 Bar (10,000 PSI).

• Identification: model SACS1006; SKU SUW-033060; product number 033060. Weight: 131.3 lb / 59.6 kg.
• Hydraulic details: 3/8"-18 NPT quick coupling; effective cylinder area of 20.62 in²; oil capacity of 136.30 inch³.
• Travel and height: stroke of 6.61 in; collapsed height (A) of 14.06 inches; extended height (B) of 20.67 inches.
• External dimensions: outside diameter (D) of 6.97 inches; piston rod diameter (F) of 4.13 inches.
• Threaded fixture connections: collar and plunger threads; collar thread (C) of 6-7/8 - 12 inches; collar thread length (X) of 1.73 inches.
• Base fixture mounting: bolt circle (U) of 5.47 inches; thread (V) of 3/4 - 10UNC inches; thread depth (Z) of .98 inches.
