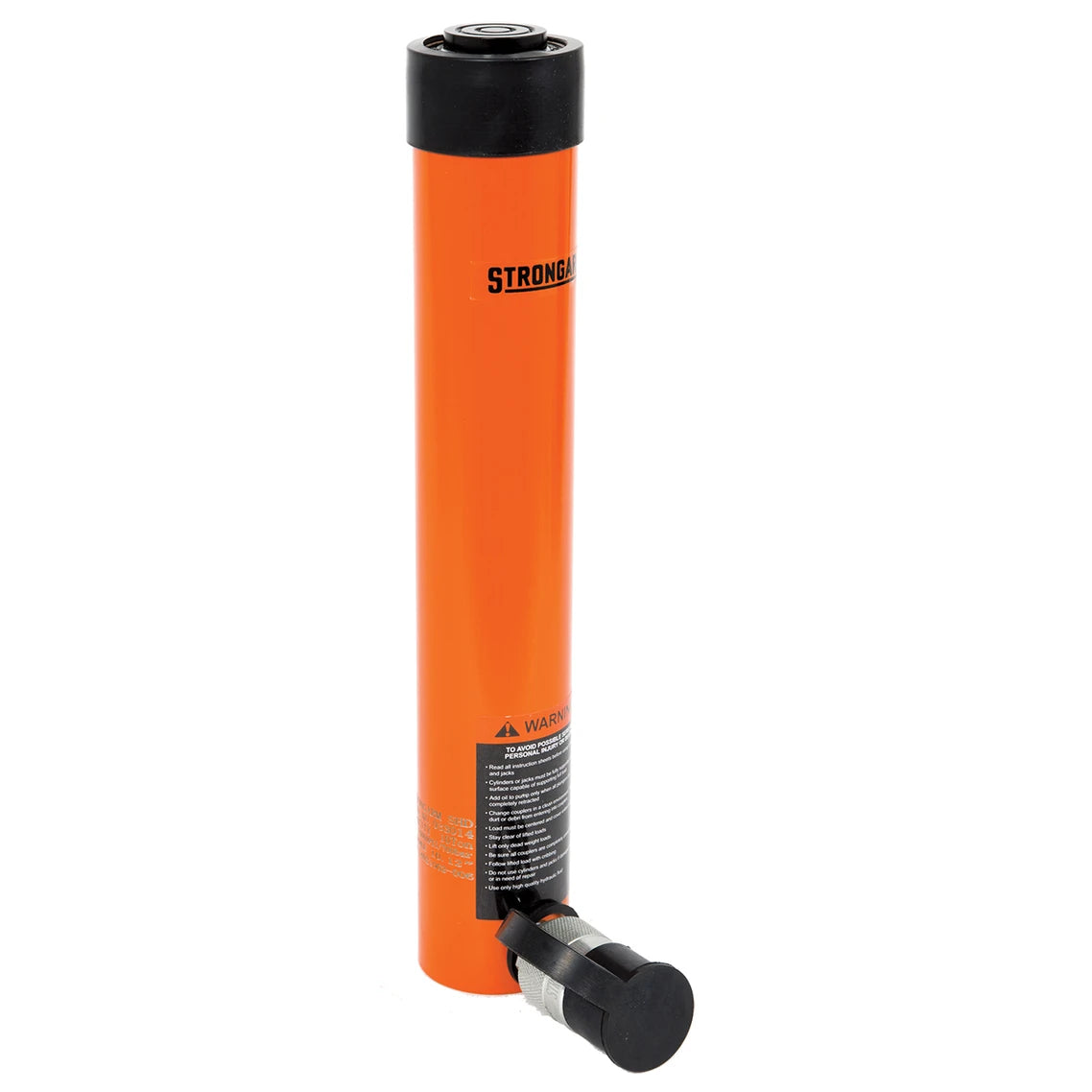

The Strongarm SACS1010 is a super heavy duty single acting cylinder with a 10 metric ton capacity at 700 Bar (10,000 PSI). Its high strength alloy steel construction is paired with an internally treated cylinder for durability, while baked enamel adds corrosion resistance. A heavy duty spring returns the plunger. Threaded attachment points at the collar and plunger, plus mounting holes in the base, accommodate optional fixtures. The cylinder complies with ANSI specifications.

• Identification: model SACS1010; SKU SUW-033014; product number 033014. Weight: 12.3 lb / 5.6 kg.
• Performance: capacity of 10 metric tons / 11 US tons at 700 Bar (10,000 PSI); stroke of 10.12 in; effective cylinder area of 2.25 in²; oil capacity of 22.73 inch³.
• Overall dimensions: collapsed height (A) of 13.74 in; extended height (B) of 23.86 in; outside diameter (D) of 2.25 in; piston rod diameter (F) of 1.50 in.
• Thread details: collar thread (C), 2-1/4 - 14; collar thread length (X), 1.02 in; piston internal thread (O), 1-8UNC; piston thread length (P), .75 in.
• Base fixture details: bolt circle (U), 1.54 in; thread (V), 5/16-18UNC; thread depth (Z), .47 in.
• Connection: high-quality quick coupling with a 3/8"-18 NPT thread.
