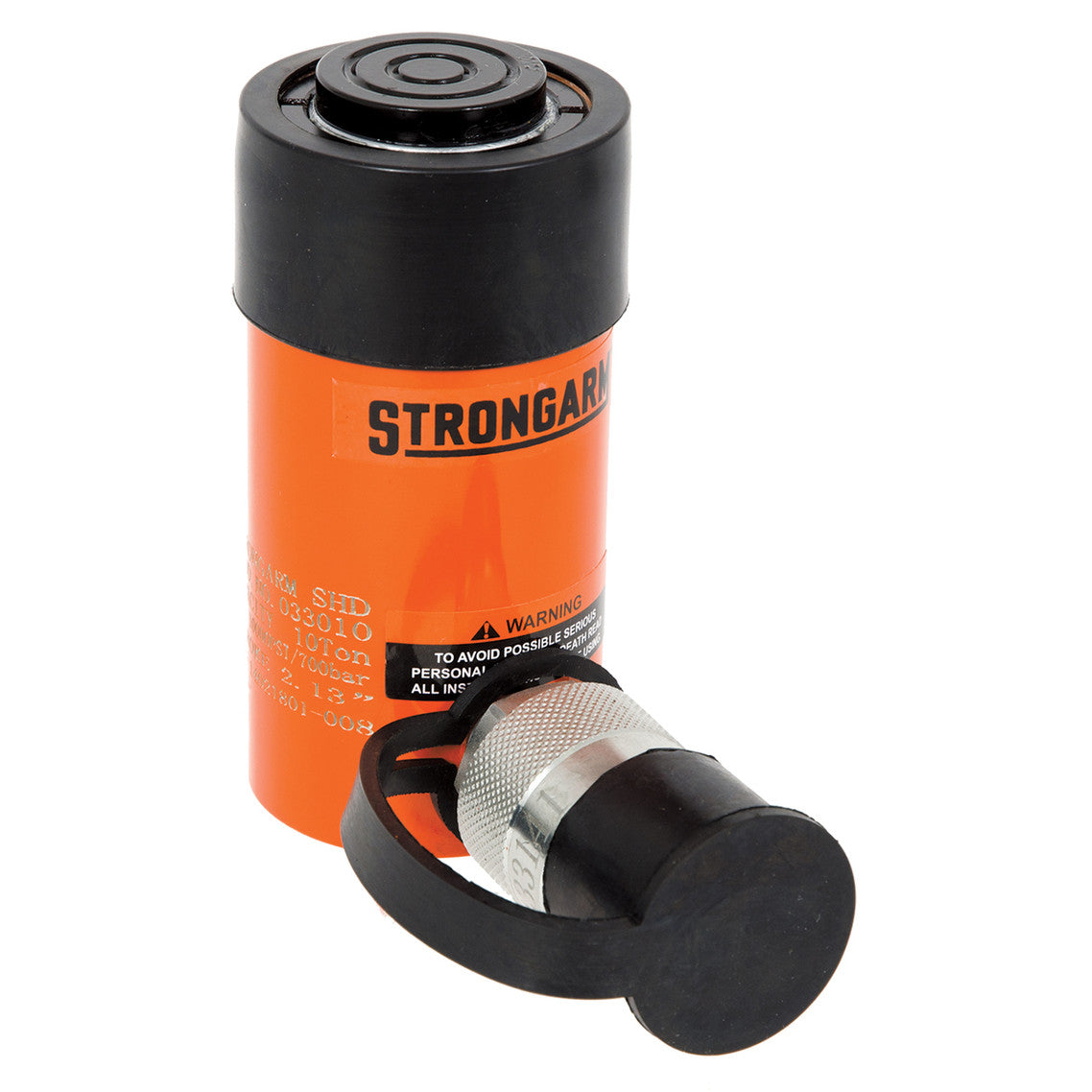

The Strongarm SACS102 is a super heavy duty, single acting cylinder with a 10 metric ton rating at 700 Bar (10,000 PSI). Its alloy steel construction provides strength, while treatment of the cylinder interior supports durability. A baked enamel coating helps resist corrosion. The plunger uses a heavy duty spring for return, and threaded attachment points plus holes in the base provide options for fixture mounting. The cylinder meets ANSI specifications.

• Identification: model SACS102; SKU SUW-033010; product number 033010. Weight: 3.7 lb / 1.7 kg.
• Hydraulic specifications: capacity of 10 metric ton / 11 US ton at 700 Bar (10,000 PSI); stroke 2.13 in; effective cylinder area 2.25 in²; oil capacity 4.78 inch³. Includes a high-quality 3/8"-18 NPT quick coupling.
• Body dimensions: collapsed height (A) 4.76 inches; extended height (B) 6.89 inches; outside diameter (D) 2.25 inches; piston rod diameter (F) 1.50 inches.
• Collar attachment: thread (C) 2-1/4 - 14 inches; thread length (X) 1.02 inches.
• Plunger attachment: piston internal thread (O) 1-8UNC inches; piston thread length (P) .75 inches.
• Base fixture mounting: bolt circle (U) 1.54 inches; thread (V) 5/16-18UNC inches; thread depth (Z) .47 inches.
