product description

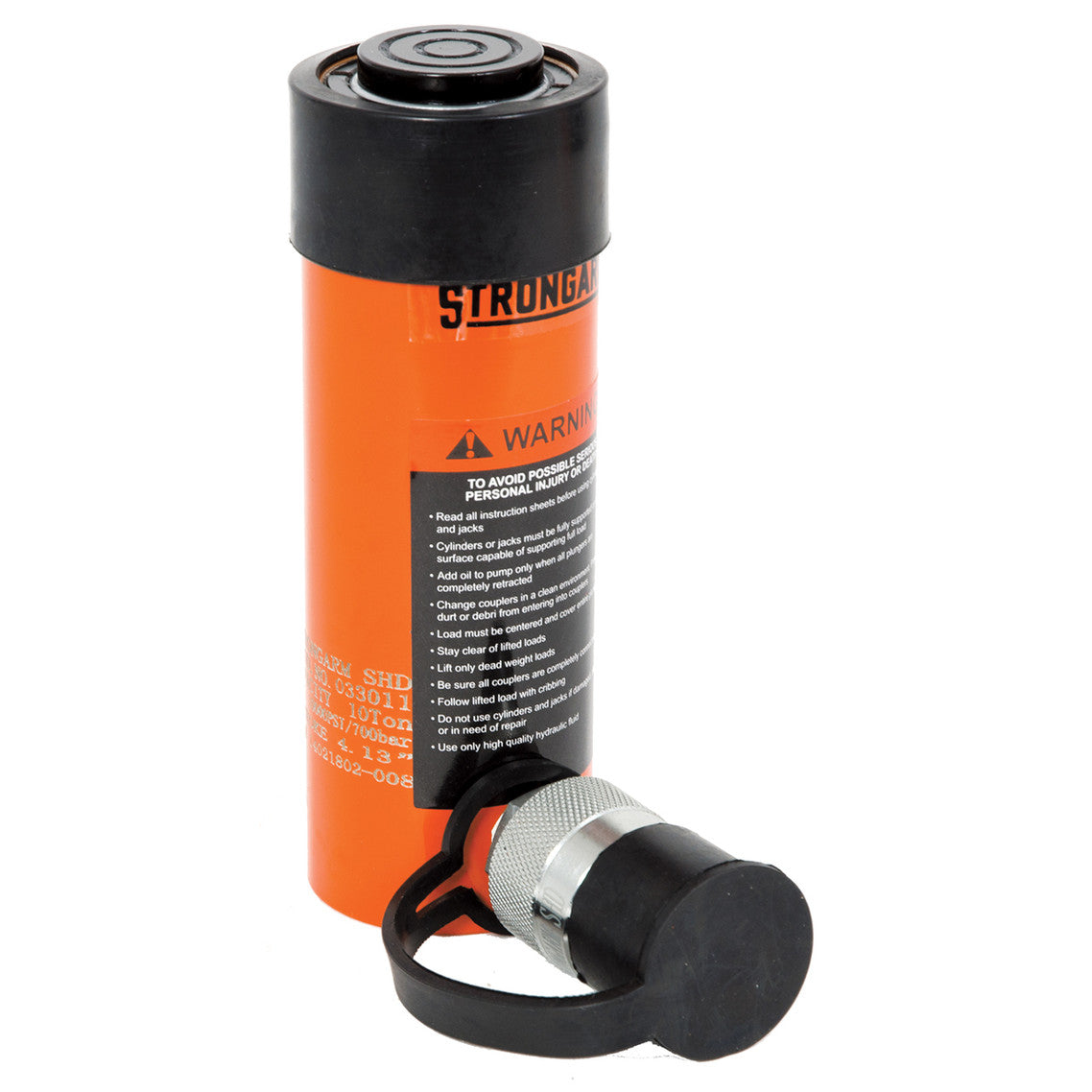

The Strongarm SACS104 is a super heavy duty, single-acting cylinder with a 10 metric ton capacity at 700 Bar (10,000 PSI). Its alloy steel construction combines a treated cylinder interior with a baked enamel exterior finish. A heavy-duty spring returns the plunger, while threaded attachment points and mounting holes in the base provide options for fixture attachment. Model SUW-033011 has a 4.13-inch stroke and includes a 3/8"-18 NPT quick coupling.
- Meets ANSI specifications.
- High-strength alloy steel provides durability; the cylinder interior receives an additional durability treatment.
- Baked enamel coating helps resist corrosion.
- Fixture attachment provisions include threads on the collar and plunger, plus base mounting holes.
- Single-acting operation with a heavy-duty plunger return spring and a 3/8"-18 NPT quick coupling.
Technical details
| Model | SACS104 |
|---|---|
| SKU | SUW-033011 |
| Product number | 033011 |
| Weight | 6.4 lb / 3 kg |
| Capacity at 700 Bar (10,000 PSI) | 10 metric ton / 11 US ton |
| Stroke | 4.13 in |
| Effective cylinder area | 2.25 in² |
| Oil capacity | 9.29 in³ |
| Height, collapsed (A) | 6.73 in |
| Height, extended (B) | 10.87 in |
| Collar thread (C) | 2-1/4 - 14 in |
| Thread length, collar (X) | 1.02 in |
| Outside diameter (D) | 2.25 in |
| Rod diameter, piston (F) | 1.50 in |
| Internal piston thread (O) | 1-8UNC in |
| Thread length, piston (P) | .75 in |
| Base mounting bolt circle (U) | 1.54 in |
| Base mounting thread (V) | 5/16-18UNC in |
| Base mounting thread depth (Z) | .47 in |
