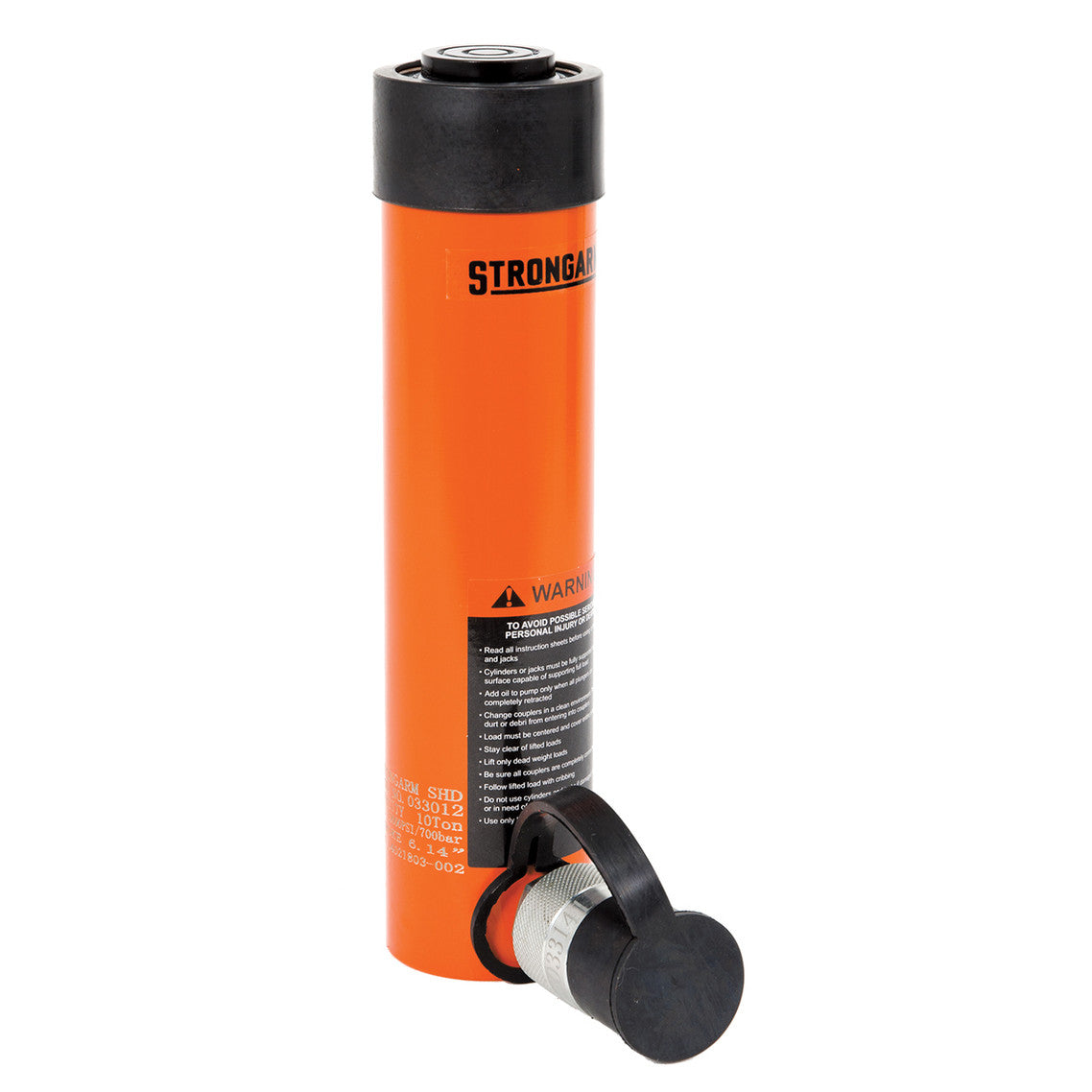

The Strongarm SACS106 is a super heavy duty, single acting cylinder rated for 10 metric tons at 700 Bar (10,000 PSI). Its high-strength alloy steel construction combines a treated cylinder interior with a baked enamel exterior to support durability and corrosion resistance. A heavy duty spring returns the plunger, while threaded collar and plunger connections, together with mounting holes in the base, provide attachment points for optional fixtures. The cylinder complies with ANSI specifications.

• Identification and connection: model SACS106; SKU SUW-033012; product number 033012; high-quality quick coupling with a 3/8"-18 NPT connection.
• Performance: capacity of 10 metric tons / 11 US tons at 700 Bar (10,000 PSI); 6.14 in stroke; effective cylinder area of 2.25 in²; oil capacity of 13.80 inch³.
• Size and weight: collapsed height (A) of 9.72 in; extended height (B) of 15.87 in; outside diameter (D) of 2.25 in; weight of 9.1 lb / 4.1 kg.
• Collar dimensions: thread (C) of 2-1/4 - 14; thread length (X) of 1.02 in.
• Piston dimensions: rod diameter (F) of 1.50 in; internal thread (O) of 1-8UNC; thread length (P) of .75 in.
• Base fixture dimensions: bolt circle (U) of 1.54 in; hole thread (V) of 5/16-18UNC; thread depth (Z) of .47 in.
