product description

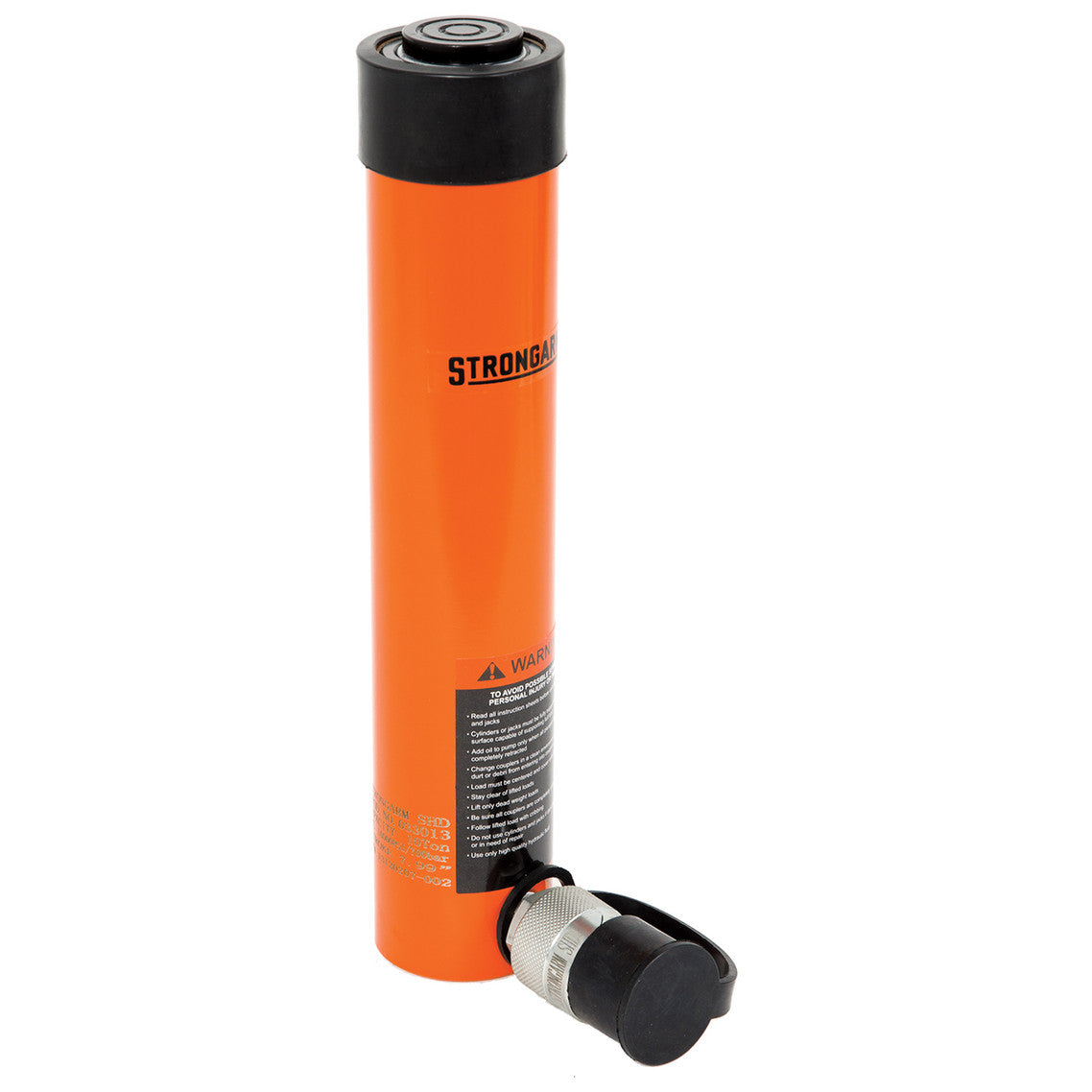

The Strongarm SACS108 is a super heavy duty, single acting cylinder with a 10 metric ton capacity at 700 Bar (10,000 PSI). Its alloy steel construction combines a treated cylinder interior with a baked enamel exterior for durability and corrosion resistance. A heavy duty spring returns the plunger, while threaded attachment points and holes in the base support optional fixture mounting. This cylinder complies with ANSI specifications.
- High-strength alloy steel body with an interior treatment to improve cylinder durability.
- Rated capacity: 10 metric tons / 11 US tons at 700 Bar (10,000 PSI).
- Plunger travel: 7.99 in, with heavy duty spring return.
- Quick coupling connection: 3/8"-18 NPT.
- Collar and plunger threads, plus base mounting holes, allow optional fixtures to be attached.
- Baked enamel coating provides increased resistance to corrosion.
| Model | SACS108 |
|---|---|
| SKU | SUW-033013 |
| Product number | 033013 |
| Weight | 10.8 lb / 4.9 kg |
| Effective cylinder area | 2.25 in² |
| Oil capacity | 17.96 inch³ |
| Height when collapsed (A) | 11.73 in |
| Height when extended (B) | 19.72 in |
| Collar thread size (C) | 2-1/4 - 14 |
| Collar threading length (X) | 1.02 in |
| Outer diameter (D) | 2.25 in |
| Piston rod diameter (F) | 1.50 in |
| Internal piston thread (O) | 1-8UNC |
| Piston threading length (P) | .75 in |
| Base mounting bolt circle (U) | 1.54 in |
| Base mounting thread (V) | 5/16-18UNC |
| Base mounting thread depth (Z) | .47 in |
