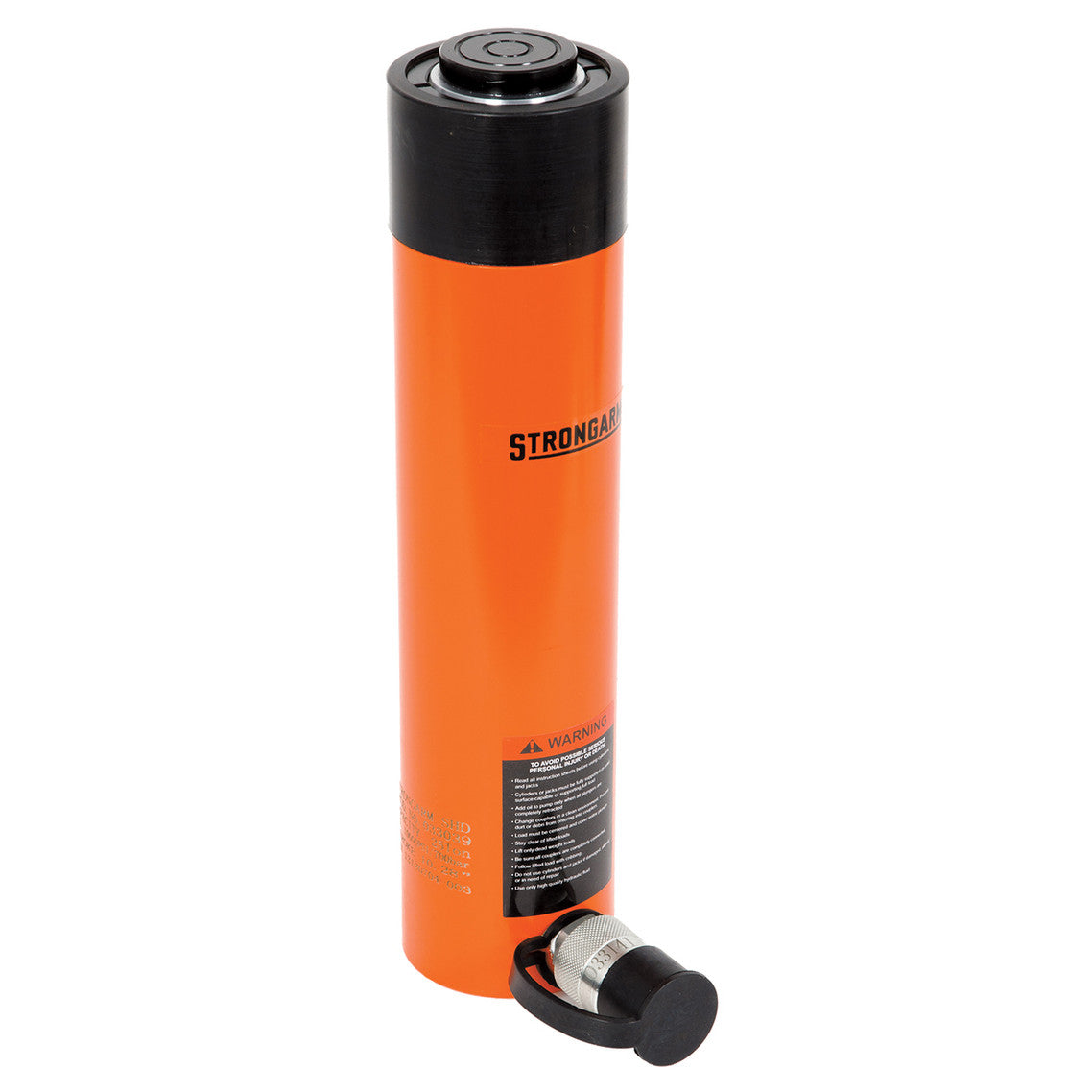

The Strongarm SACS2510 is a super heavy duty, single acting cylinder with a capacity of 25 metric tons at 700 Bar (10,000 PSI). Its high-strength alloy steel construction and treated cylinder interior support durability, while a baked enamel coating helps resist corrosion. A heavy duty spring returns the plunger. For optional fixture attachment, the cylinder provides threaded collar and plunger connections plus mounting holes in the base. It also includes a high-quality quick coupling and complies with ANSI specifications.

• Identification: model SACS2510; SKU SUW-033039; product number 033039. Weight: 31 lb / 14.1 kg.
• Hydraulic specifications: capacity of 25 metric tons / 27.5 US tons at 700 Bar (10,000 PSI); effective cylinder area of 5.15 in²; oil capacity of 52.86 inch³; 3/8"-18 NPT quick coupling.
• Travel and overall dimensions: 10.28 in stroke; collapsed height (A) of 14.72 in; extended height (B) of 25 in; outside diameter (D) of 3.39 in.
• Collar details: thread (C) of 3-5/16 - 12 inches; thread length (X) of 2.13 in.
• Piston details: rod diameter (F) of 2.24 in; internal thread (O) of 1-1/2 - 16UN inches; thread length (P) of 1.02 in.
• Base mounting details: bolt circle (U) of 2.28 in; thread (V) of 1/2 - 13UNC inches; thread depth (Z) of .75 in.
