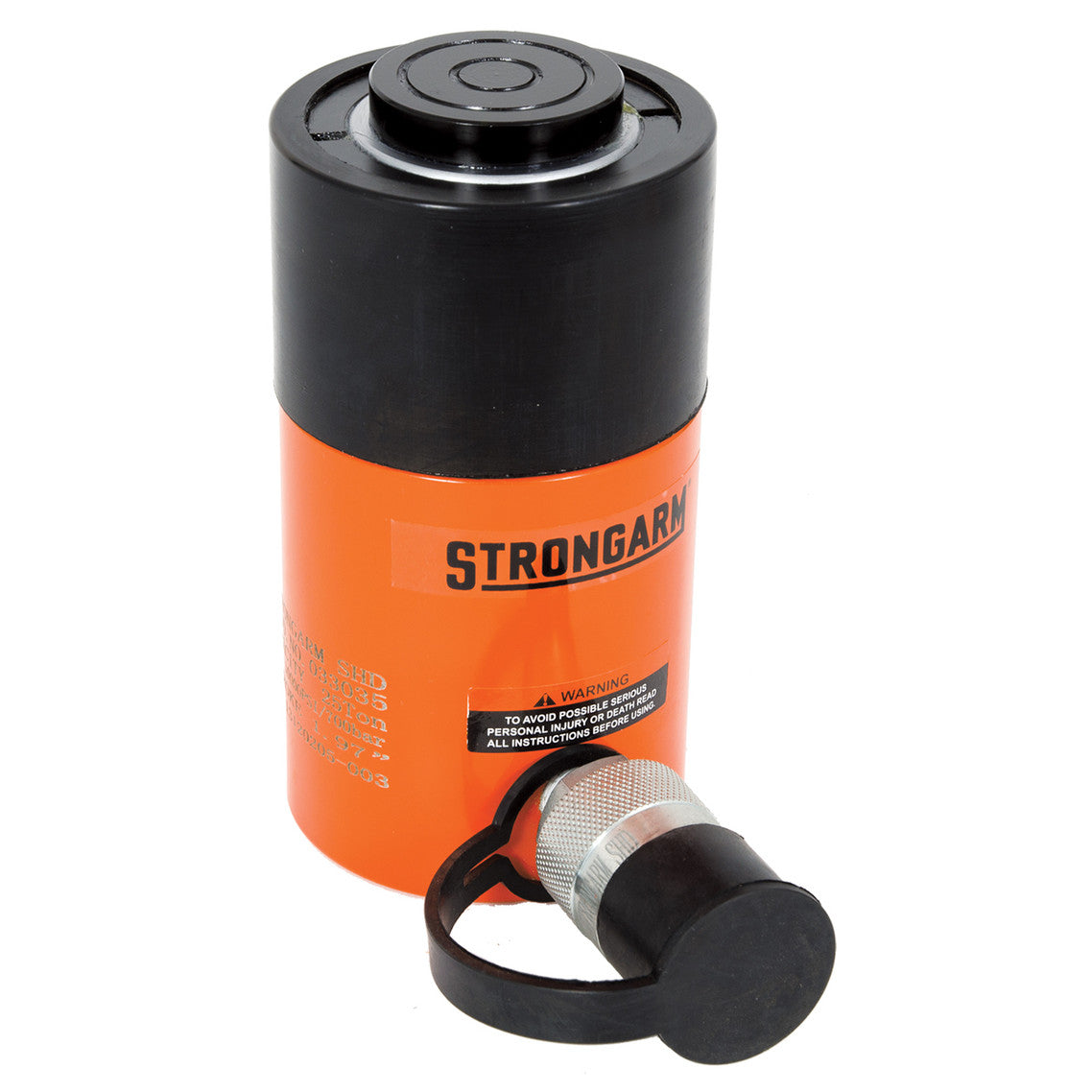

The Strongarm SACS252 is a super heavy duty, single acting cylinder rated for 25 metric tons at 700 Bar (10,000 PSI). Its high strength alloy steel construction combines a treated cylinder interior with a baked enamel coating for durability and corrosion resistance. A heavy duty spring returns the plunger, while threaded mounting features and base holes allow optional fixtures to be attached. The cylinder complies with ANSI specifications and incorporates a 3/8"-18 NPT quick coupling.

• Identification: model SACS252; SKU SUW-033035; product number 033035. Weight: 13.6 lb / 6.2 kg.
• Capacity at 700 Bar (10,000 PSI): 25 metric tons / 27.5 US tons. Stroke: 1.97 in; effective cylinder area: 5.15 in²; oil capacity: 10.13 inch³.
• Overall dimensions: collapsed height (A), 6.50 in; extended height (B), 8.46 in; outside diameter (D), 3.39 in; piston rod diameter (F), 2.24 in.
• Collar mounting details: thread (C), 3-5/16 - 12; thread length (X), 2.13 in.
• Piston threading: internal thread (O), 1-1/2 - 16UN; thread length (P), 1.02 in. Plunger threads provide an attachment point for optional fixtures.
• Base fixture mounting: bolt circle (U), 2.28 in; hole thread (V), 1/2 - 13UNC; thread depth (Z), .75 in.
