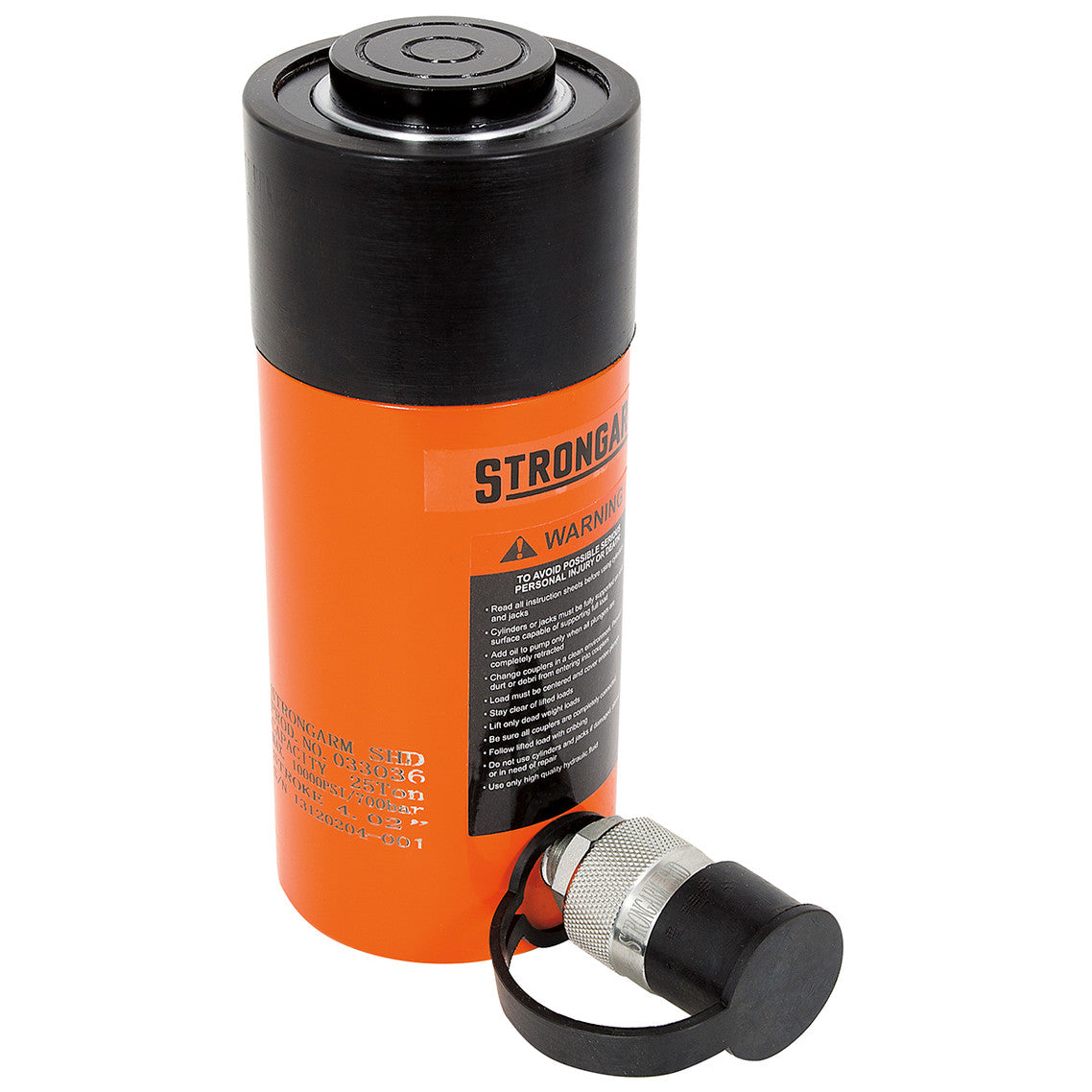

The Strongarm SACS254 is a super heavy-duty, single-acting cylinder with a 25 metric ton capacity at 700 Bar (10,000 PSI). Its high-strength alloy steel construction combines with an internally treated cylinder for durability, while a baked enamel coating improves resistance to corrosion. A heavy-duty spring returns the plunger. Threaded collar and plunger connections, together with mounting holes in the base, provide attachment points for optional fixtures. This cylinder meets ANSI specifications and includes a 3/8"-18 NPT quick coupling. The SKU is SUW-033036, with product number 033036.

• Capacity and travel: 25 metric ton / 27.5 US ton at 700 Bar (10,000 PSI); stroke of 4.02 in.
• Hydraulic specifications: effective cylinder area of 5.15 in² and oil capacity of 20.66 inch³.
• Overall dimensions: collapsed height (A) of 8.46 in; extended height (B) of 12.48 in; outside diameter (D) of 3.39 in. Weight: 17.6 lb / 8 kg.
• Collar dimensions: thread (C) of 3-5/16 - 12 in, with a thread length (X) of 2.13 in.
• Piston dimensions: rod diameter (F) of 2.24 in; internal thread (O) of 1-1/2 - 16UN in; thread length (P) of 1.02 in.
• Base fixture dimensions: bolt circle (U) of 2.28 in; hole thread (V) of 1/2 - 13UNC in; thread depth (Z) of .75 in.
