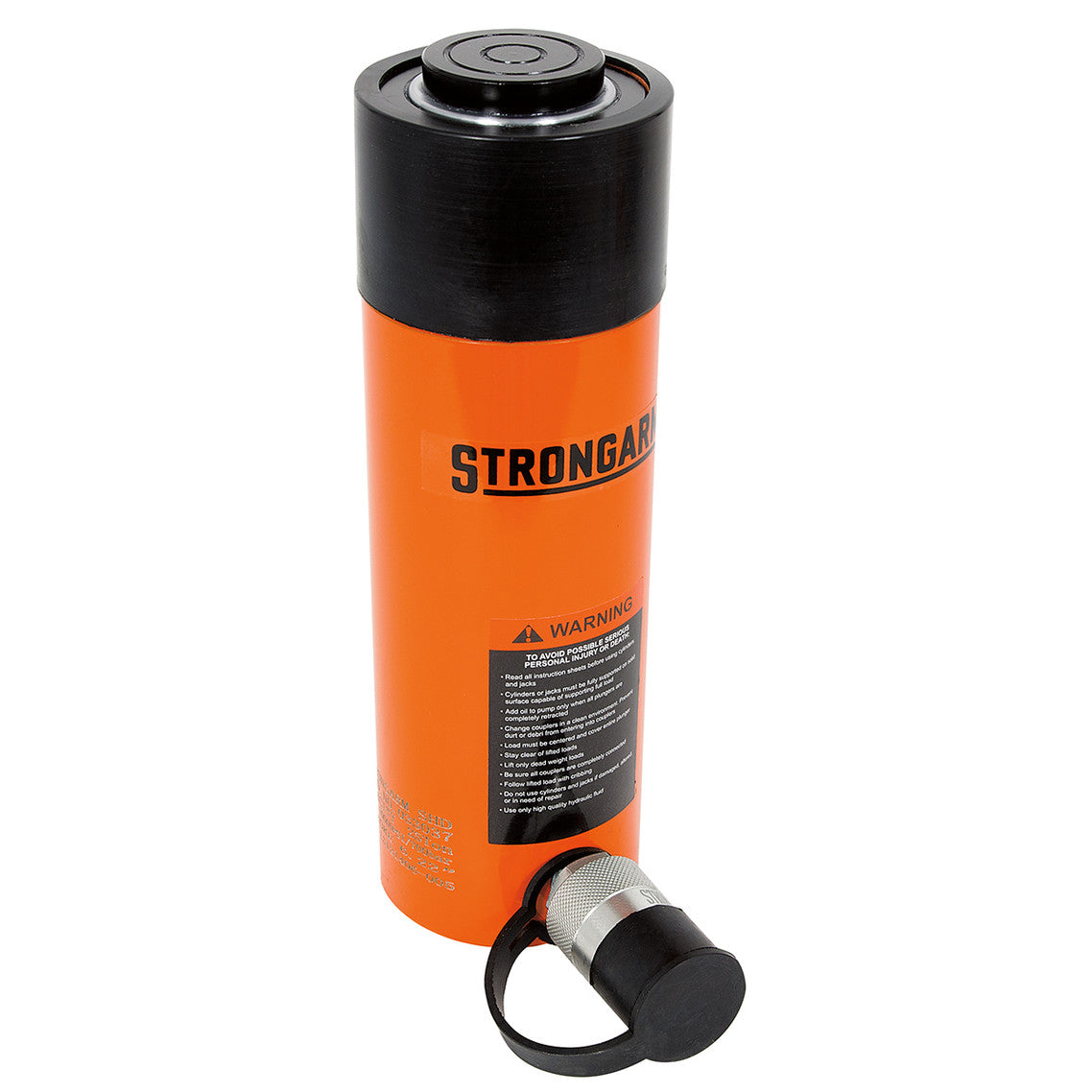

The Strongarm SACS256 is a super heavy duty, single acting cylinder with a 25 metric ton capacity at 700 Bar (10,000 PSI). Its high-strength alloy steel construction combines a treated cylinder interior with a baked enamel coating for durability and corrosion resistance. A heavy-duty spring returns the plunger, while threaded attachment points and base holes accommodate optional fixtures. The cylinder provides 6.22 inches of stroke and includes a 3/8"-18 NPT quick coupling. Model/SKU: SUW-033037; product number: 033037.

• Performance: 25 metric ton / 27.5 US ton capacity at 700 Bar (10,000 PSI); effective cylinder area of 5.15 in²; oil capacity of 32.00 inch³. Compliant with ANSI specifications.
• Construction: high-strength alloy steel, durability-enhancing interior treatment, corrosion-resistant baked enamel finish and heavy-duty plunger return spring.
• Size and weight: 10.75 inches collapsed and 16.97 inches extended; outside diameter of 3.39 inches; piston rod diameter of 2.24 inches; weight of 22.75 lb / 10.3 kg.
• Collar attachment: 3-5/16 - 12 thread with a thread length of 2.13 inches.
• Piston attachment: internal thread of 1-1/2 - 16UN with a thread length of 1.02 inches.
• Base fixture mounting: 2.28-inch bolt circle, 1/2 - 13UNC threads and .75-inch thread depth; collar threads, plunger threads and base mounting holes support optional fixture attachment.
