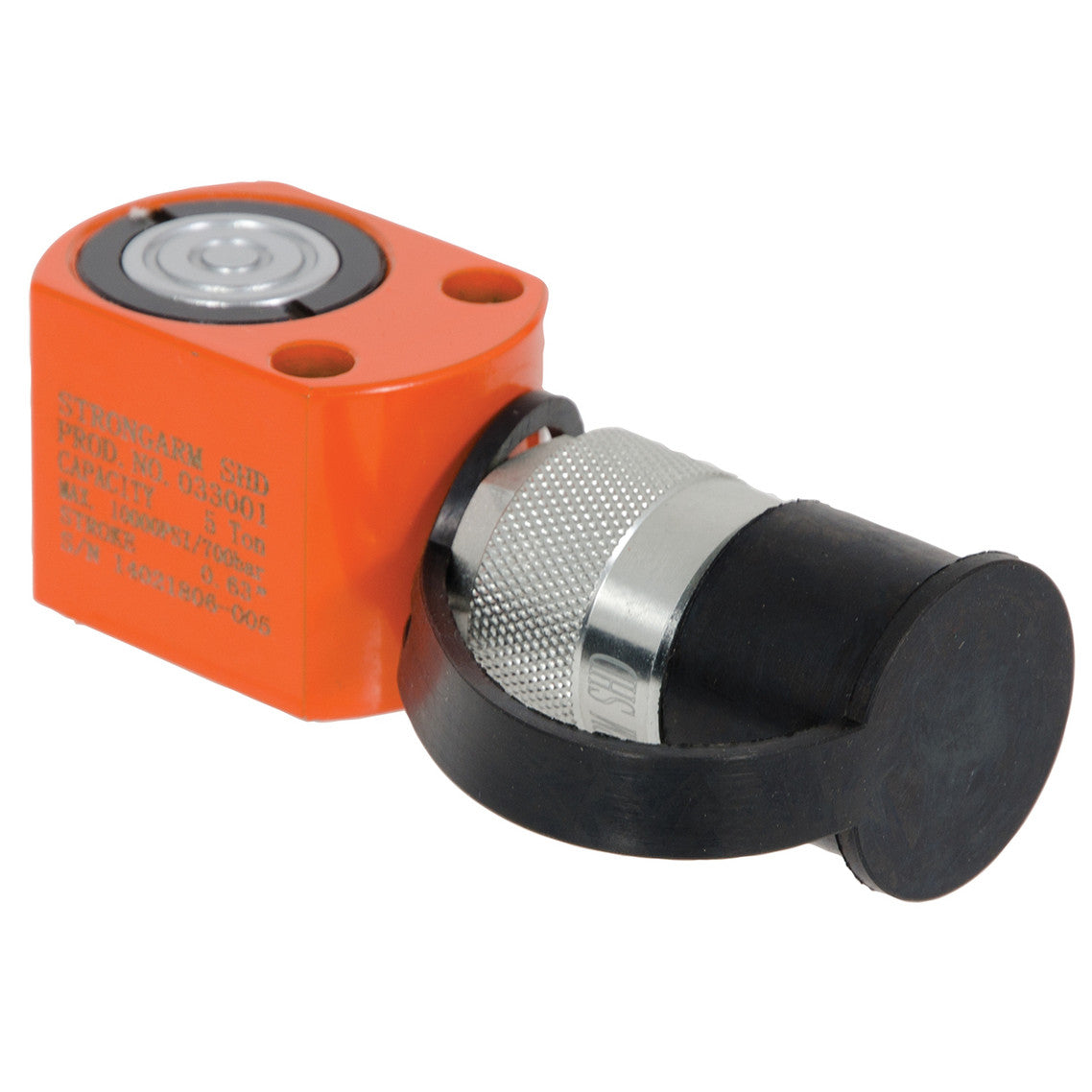

The Strongarm SACS50 (SUW-033001) is a super heavy-duty, single-acting cylinder with a capacity of 5 metric tons (5.5 US tons) at 700 Bar (10,000 PSI). Its high-strength alloy steel construction supports durability, with additional treatment inside the cylinder and a corrosion-resistant baked enamel finish. A heavy-duty spring returns the plunger. Threads on the collar and plunger, plus mounting holes in the base, allow optional fixtures to be attached.

• Meets ANSI specifications and includes a high-quality 3/8"-18 NPT quick coupling.
• Stroke: .63 in; effective cylinder area: 1.10 in²; oil capacity: .70 inch³.
• Height when collapsed (A): 1.65 inches; height when extended (B): 2.28 inches.
• Outside diameter (D): 2.32 x 1.65 inches; piston rod diameter (F): .98 inches.
• Base fixture hole dimensions: bolt circle U, 1.10 inches; thread V, .22 inches.
• Weight: 1.8 lb / 0.8 kg; product number: 033001.
