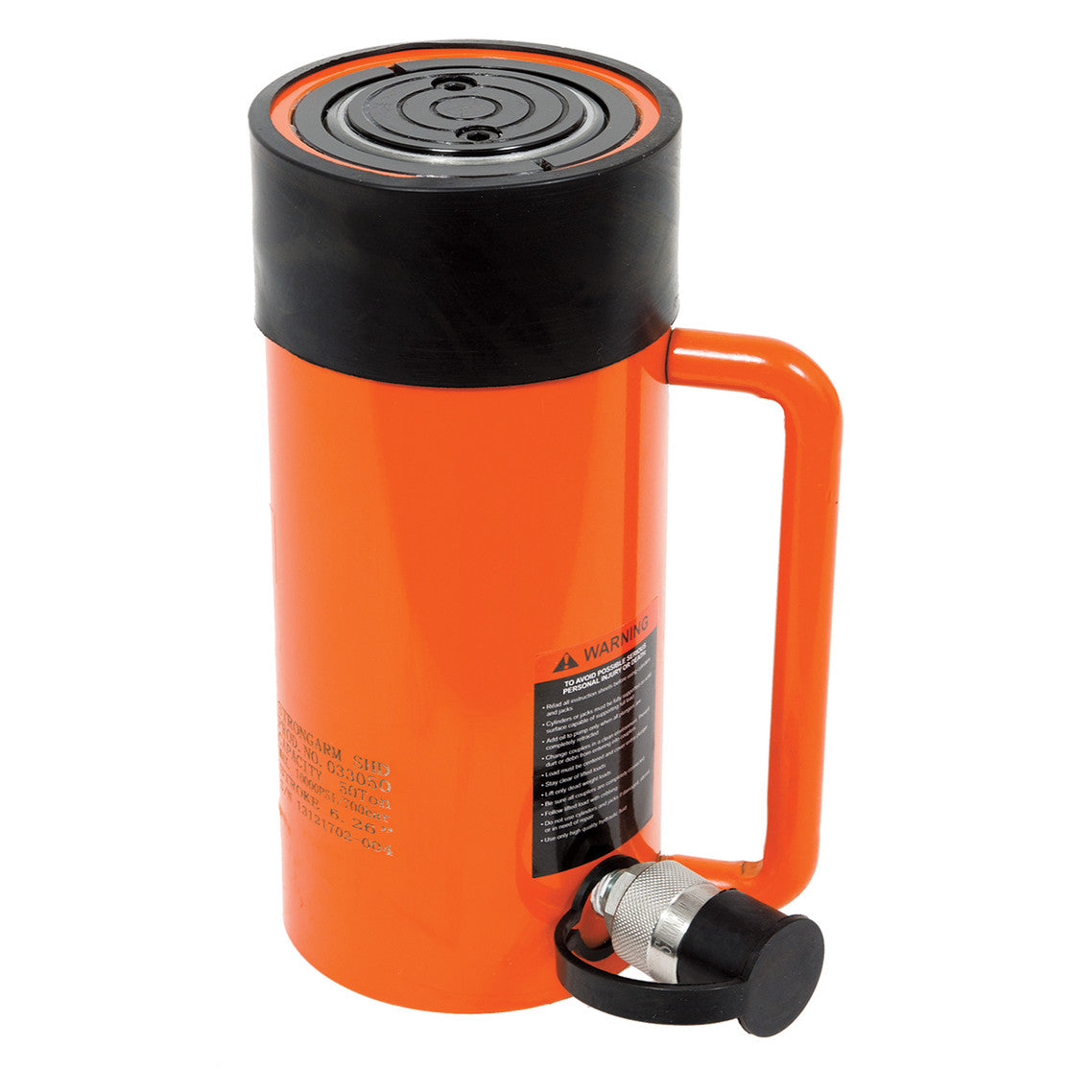

The Strongarm SACS506 single-acting cylinder, model SUW-033050, delivers a rated capacity of 50 metric tons at 700 Bar (10,000 PSI). Its high-strength alloy steel construction is paired with an internally treated cylinder for durability and a baked enamel coating that improves corrosion resistance. A heavy-duty spring returns the plunger, while threaded attachment points and mounting holes in the base allow optional fixtures to be fitted. The cylinder complies with ANSI specifications.

• Capacity rating: 50 metric tons / 55 US tons at 700 Bar (10,000 PSI); stroke: 6.26 in; effective cylinder area: 10.99 in²; oil capacity: 68.77 inch³.
• Height when collapsed: 11.10 in; height when extended: 17.36 in; outside diameter: 5.00 in; piston rod diameter: 3.15 in.
• Collar thread: 5 - 12; collar thread length: 2.17 in. Plunger threads provide an additional fixture attachment point.
• Base fixture dimensions: 3.74 in bolt circle; 1/2 - 13UNC hole threads; thread depth: .75 in.
• Includes a high-quality quick coupling with a 3/8"-18 NPT connection.
• Weight: 48.8 lb / 22.1 kg; model/SKU: SUW-033050; product number: 033050.
