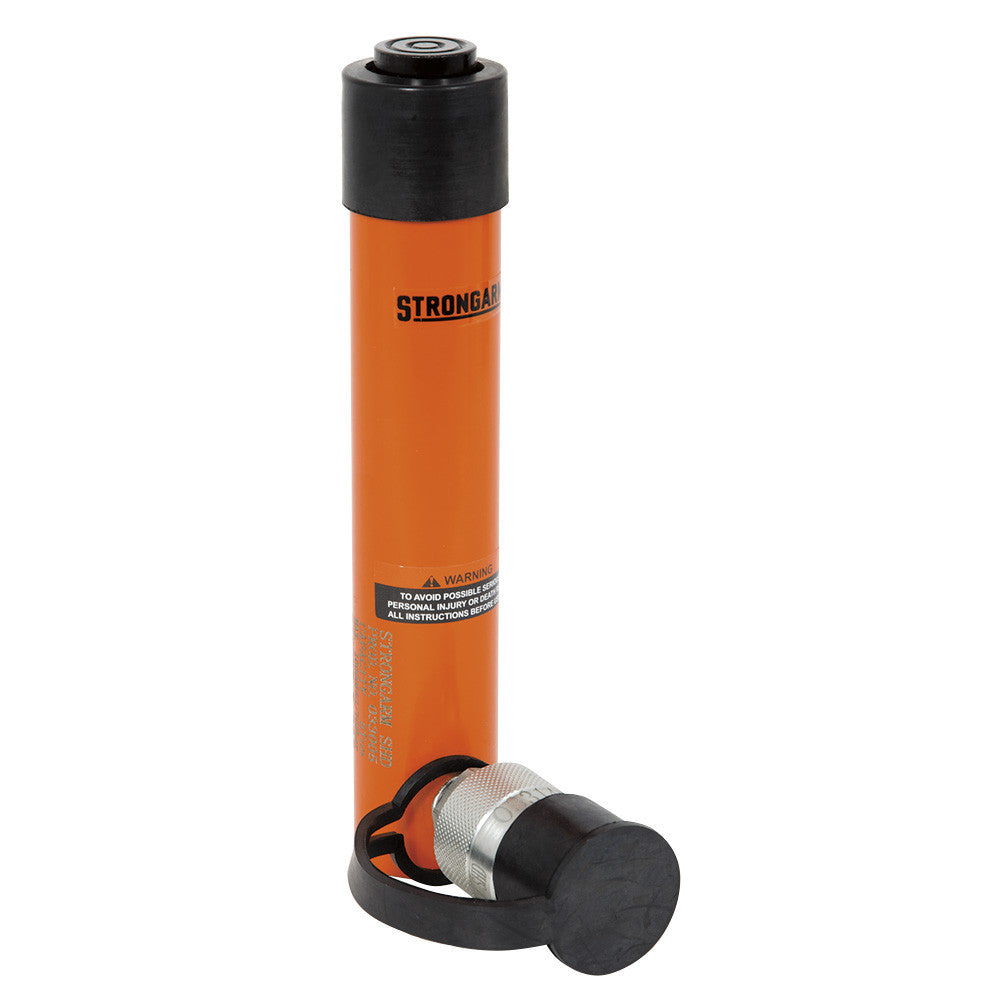

The Strongarm SACS55 is a super heavy duty, single acting cylinder with a 5 metric ton capacity at 700 Bar (10,000 PSI). Its alloy steel construction combines high strength with an internally treated cylinder for durability. A heavy duty spring returns the plunger, while a baked enamel coating helps resist corrosion. Collar and plunger threading, together with mounting holes in the base, provide attachment points for optional fixtures. Model SUW-033005 complies with ANSI specifications.

• Capacity at 700 Bar (10,000 PSI): 5 metric ton / 5.5 US ton. Weight: 3.7 lb / 1.7 kg. Product number: 033005.
• Stroke: 5.00 in; effective cylinder area: 1.10 in²; oil capacity: 5.50 inch³.
• Height when collapsed (A): 8.46 inches; height when extended (B): 13.46 inches. Outside diameter (D): 1.50 inches; piston rod diameter (F): .98 inches.
• Collar thread (C): 1-/12 - 16 inches; collar thread length (X): 1.10 inches. Internal piston thread (O): 3/4-16UNF inches; piston thread length (P): .63 inches.
• Base fixture mounting dimensions: bolt circle (U), .98 inches; thread (V), 1/4-20UNC inches; thread depth (Z), .55 inches.
• Quick coupling: 3/8"-18 NPT. Construction features include high strength alloy steel, an internal durability treatment, a heavy duty return spring and a corrosion-resistant baked enamel finish.
