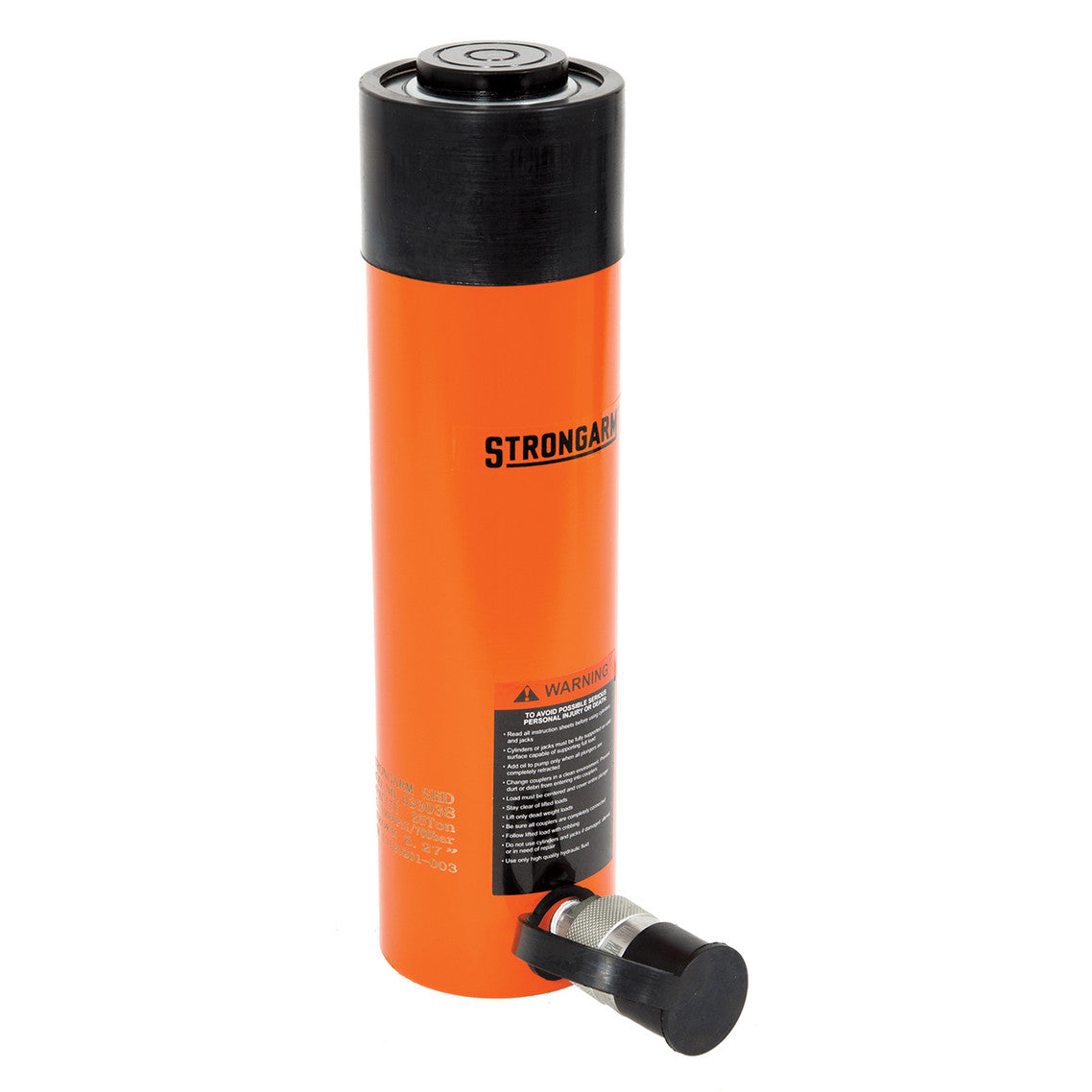

The Strongarm SACS58 is a super heavy duty, single acting cylinder with a 25 metric ton capacity at 700 Bar (10,000 PSI). Its alloy steel construction combines high strength with an internally treated cylinder for durability. A baked enamel coating helps resist corrosion, while a heavy duty spring returns the plunger. Collar and plunger threading, together with mounting holes in the base, provide attachment points for optional fixtures. The cylinder complies with ANSI specifications and includes a 3/8"-18 NPT quick coupling.

• Identification: model SACS58; SKU SUW-033038; product number 033038. Weight: 26.6 lb / 12.1 kg.
• Capacity at 700 Bar (10,000 PSI): 25 metric tons / 27.5 US tons. Stroke: 8.27 in; effective cylinder area: 5.15 in²; oil capacity: 42.53 inch³.
• Height dimensions: collapsed (A), 12.72 inches; extended (B), 20.98 inches. Outside diameter (D): 3.39 inches; piston rod diameter (F): 2.24 inches.
• Collar dimensions: thread (C), 3-5/16 - 12 inches; thread length (X), 2.13 inches.
• Piston dimensions: internal thread (O), 1-1/2 - 16UN inches; thread length (P), 1.02 inches.
• Base fixture dimensions: bolt circle (U), 2.28 inches; hole thread (V), 1/2 - 13UNC inches; thread depth (Z), .75 inches.
