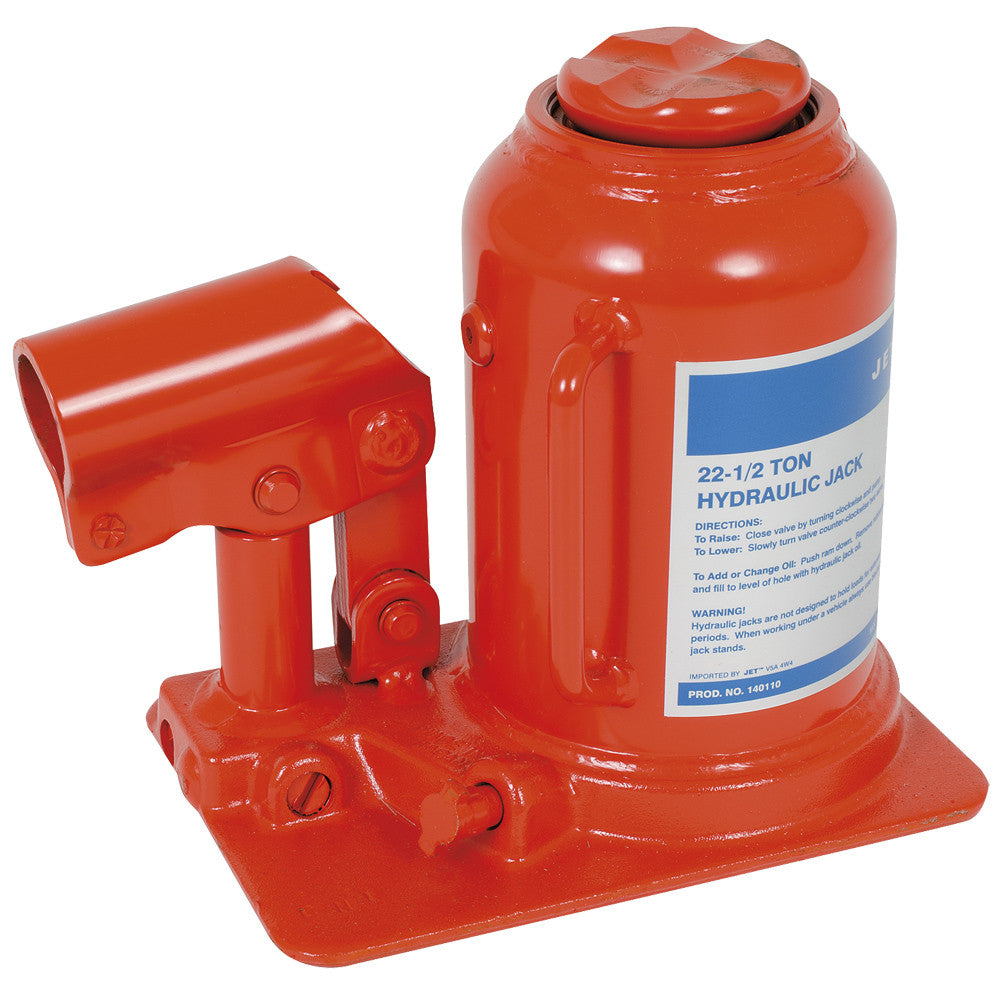

The Strongarm SUW-140110 is a low-profile hydraulic bottle jack for industrial lifting. Electrical welds join the base and cylinder for strength and leak prevention, while the hydraulic system operates despite temperature extremes. It supports upright, angled and horizontal use; when positioned horizontally, its valving lets the handle stay upright. A cleated steel saddle provides grip at the lifting point, and an extension screw adjusts the pickup height. Serviceable construction and interchangeable components simplify repairs.

• Rated lifting capacity: 12-1/2 T; tested above 150% of its rated capacity.
• Retracted height: 6-3/4"; fully extended height: 13-1/2".
• Extension screw height: 3"; piston stroke: 3-3/4".
• Base dimensions: 6-1/2" x 4-3/16". Product weight: 12.76 lb (5.8 kg); shipping weight: 12.8 lb (5.8 kg).
• One-piece handle; made in Japan. Manufacturer part number: JHJ-22-1/2LP.
• Built to JIS and ANSI standards, with common release-valve assemblies and interchangeable service parts.
